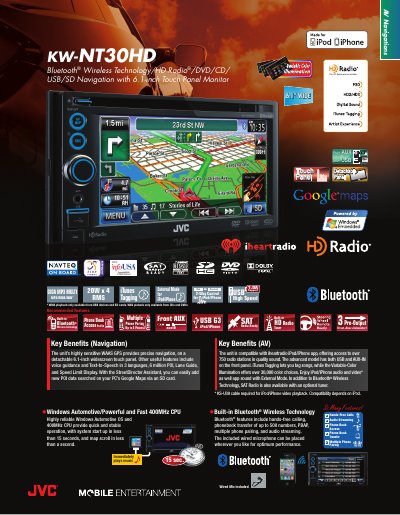

This document describes the features and characteristics of AV Navigations KW-NT30HD Bluetooth® Wireless Technology/HD Radio®/DVD/CD/ USB/SD Navigation, including precise navigation, voice guidance, Text-to-Speech, POI search, Bluetooth wireless technology, MP3/WMA/WAV music playback, iPod/iPhone compatibility, HD Radio tuner, iTunes Tagging, etc.
The KW-NT30HD is a 6.1‑inch detachable touch‑screen navigation head unit with WAAS‑enabled GPS, voice guidance, Text‑to‑Speech in English, Spanish and French, and over 6 million POI entries. It includes lane‑guide, speed‑limit display, magnified view, and a StreetDirector Assistant for easy POI updates via SD card.
Audio and video features include built‑in Bluetooth® for hands‑free calls and streaming, HD Radio®, DVD/CD playback, USB and AUX inputs, iPod/iPhone 2‑way control, external mode, and a 7‑band iEQ. The unit also supports a rear‑view camera, variable‑color illumination, and iTunes tagging, all powered by a 400 MHz Windows Automotive CPU.
| Installation Size | 7 3/16" x 4 5/8" x 6 3/8" (182 × 111 × 161 mm) |
|---|---|
| Panel Size | 7 7/16" x 4 5/8" x 7/16" (188 × 117 × 10 mm) |
| Detachable Face Plate | 6 3/4" x 3 1/2" x 1 7/16" (170 × 88 × 36 mm) |
| Maximum Power Output | 50 W × 4 (14.4 V, 4 Ω) |
| Continuous Power Output (RMS) | 20 + 20 W RMS × 4 channels |
| Total Harmonic Distortion (THD) | 1.0 % |
| Monitor Screen Size | 6.1 inches |
| Number of Pixels | 336,960 |
| Audio Input Level | 500 mV / 20 kΩ |
| Pre‑Output Level / Impedance | 2.5 V / 20 kΩ |
It offers WAAS‑enabled GPS, voice guidance, Text‑to‑Speech in English, Spanish and French, over 6 million POI entries, lane‑guide, speed‑limit display, magnified view, and a StreetDirector Assistant for POI updates via SD card.
The detachable face panel measures 6 3/4" × 3 1/2" × 1 7/16" (170 × 88 × 36 mm).
