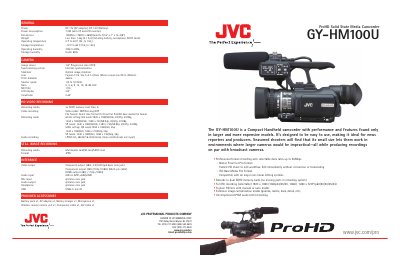

The GY‑HM100U is a compact handheld camcorder featuring a 1/4‑inch 3‑CCD sensor, Fujinon 10× HD lens, and optical image stabilization. It records full‑HD video in MPEG‑2 Long GOP format to dual SDHC cards, offering selectable data rates up to 35 Mbps and uncompressed LPCM audio.
Power can be supplied by a DC 11 V AC adaptor or a 7.2 V battery, and the unit includes a 2.8‑inch LCD, HDMI, component and composite video outputs, XLR audio inputs, and a USB 2.0 port. The manual covers operating temperatures, dimensions, weight, and all control functions for professional news and field shooting. This manual is written in Chinese.
| Power input | DC 11 V (AC adaptor) or DC 7.2 V (Battery) |
|---|---|
| Power consumption | 7.2 W (with VF and LCD monitor) |
| Dimensions | 138 mm × 178 mm × 365 mm |
| Weight | < 1.4 kg (3.1 lb) |
| Operating temperature | 0 °C to 40 °C |
| Image sensor | 1/4" Progressive scan 3‑CCD |
| Lens | Fujinon F1.8, 10× zoom, f=3.7‑37 mm |
| Shutter speed | 1/4 sec to 1/10000 sec |
| Video codec | MPEG‑2 Long GOP |
| Audio recording | LPCM 2‑ch, 48 kHz/16‑bit |
| LCD display | 2.8‑inch, 16:9 aspect ratio |
| Audio inputs | XLR × 2 (mic +48 V/LINE), 3.5 mm mic jack |
It records to two SDHC Class 6 memory cards, each up to 32 GB, for a total capacity of up to 64 GB.
The camcorder can be powered by a DC 11 V AC adaptor or by a 7.2 V rechargeable battery.
Yes, it includes an optical image stabilizer (OIS) built into the camera.
