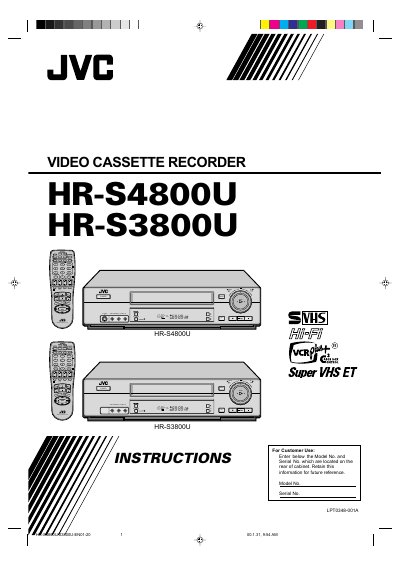

JVC HR‑S4800U / HR‑S3800U Video Cassette Recorder Instructions

About this manual

This manual covers safety precautions, installation steps, and basic connections for the JVC HR‑S4800U and HR‑S3800U video cassette recorders. It explains how to ground the unit, connect power, antenna, and audio/video cables, and how to mount the VCR safely.

The guide also details initial settings such as Plug‑and‑Play clock and channel setup, timer programming, video calibration, and remote‑control configuration. Troubleshooting tips and service information are provided for qualified technicians.

What's inside

• Safety Instructions
• Installation and Grounding
• Basic Connections
• Initial Settings (Plug & Play)
• Timer Recording
• Video Calibration
• Remote Control Setup
• Troubleshooting
• Specifications

Specifications

Frequently asked questions

What power source should be used with the VCR?

The recorder must be powered from an AC 120 V, 60 Hz source only.

How does the clock set automatically?

When the AC power cord is first connected and the antenna cable is attached, the VCR performs a Plug‑and‑Play setup that automatically sets the clock and tuner channels.

Can the unit be used near water or moisture?

No. The manual warns not to expose the unit to rain or moisture to prevent fire or shock hazards.
