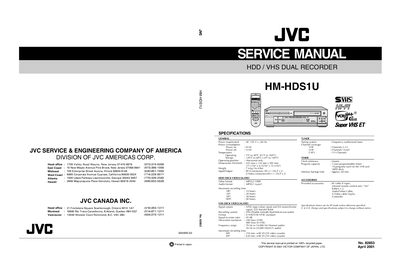

JVC HM-HDS1U HDD/VHS Dual Recorder Service Manual

This manual provides maintenance information for the JVC HM-HDS1U HDD / VHS DUAL RECORDER.

Brand: JVC
Category: Player
Document type: Service Manual
Language: English
Pages: 47
File format: PDF
File size: 1.4 MB
Published: 04 May, 2012
Updated: 30 September, 2023
MD5 checksum: 3D0D212395E9CD5811DA067FF3DEA3B2
PDF: JVC HM-HDS1U HDD/VHS Dual Recorder Service Manual PDF

About this manual

This service manual covers the JVC HM-HDS1U HDD/VHS dual recorder, providing detailed safety precautions, disassembly instructions, and adjustment procedures for both the VHS and HDD sections. It includes wiring diagrams, part numbers, and specifications needed by service technicians.

The document also lists maximum recording times, power requirements, dimensions, and connector types, as well as a comprehensive parts list and schematics for troubleshooting and repair.

What's inside

Hard Disk Drive (HDD)
Important Safety Precautions
Disassembly
Mechanism Adjustment
Electrical Adjustment
Charts and Diagrams
Parts List

Specifications

Power requirement	AC 120 V, 60 Hz
Power consumption (on)	245 W
Power consumption (off)	14 W
RCA connectors	IN x 1, OUT x 2
S‑Video connectors	IN x 1, OUT x 2

Frequently asked questions

What is the power consumption when the recorder is turned on?

The unit consumes 245 W when powered on.

What video connectors are provided on the unit?

It includes RCA connectors (IN × 1, OUT × 2) and S‑Video connectors (IN × 1, OUT × 2).

Download PDF (1.4 MB)
