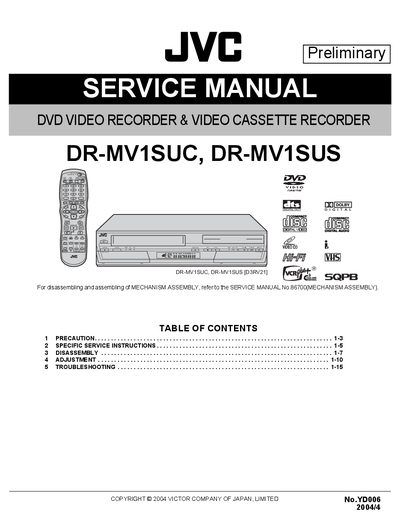

This document is a service manual for DVD recorders DR-MV1SUC, DR-MV1SUS, including precautions, specific service instructions, disassembly, adjustment and troubleshooting etc.
This service manual provides detailed information for the JVC DR-MV1SUC and DR-MV1SUS DVD video recorder and video cassette recorder. It includes the product specifications, safety precautions, and step‑by‑step procedures for disassembly, adjustment, and troubleshooting of both the DVD and VCR sections.
The document also describes remote‑control code settings, Jig RCU mode, Mechanism service mode, cleaning and lubrication guidelines, and a recommended servicing schedule for major components. Safety checks after servicing, such as insulation resistance and grounding tests, are outlined to ensure compliance with international safety standards.
| Power requirement | AC 120 V, 60 Hz |
|---|---|
| Power consumption (on) | 43 W |
| Power consumption (off) | 16.5 W |
| Operating temperature | 5 °C to 35 °C |
| Storage temperature | -20 °C to 60 °C |
| Dimensions (W × H × D) | 435 mm × 96 mm × 347 mm |
| Maximum DVD recording time | 8 hours (4.7 GB disc) |
| Audio recording system | Dolby Digital (2 ch), Linear PCM (XP mode only) |
| Video compression | MPEG‑2 (CBR/AVBR) |
| VCR maximum recording time (SP) | 210 min with ST‑210 cassette |
| Signal‑to‑noise ratio (VCR) | 45 dB |
| Horizontal resolution (VCR) | 230 lines |
