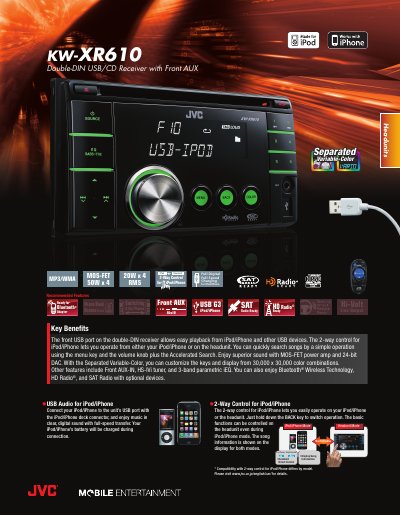

The KW‑XR610 is a double‑DIN headunit with a front USB port for iPod/iPhone playback and charging, 2‑way control for iPod/iPhone, and optional Bluetooth, HD Radio, and SAT Radio. It offers a MOS‑FET power amp, 24‑bit DAC, and a customizable Separated Variable‑Color display with over 30,000 color combinations.
Key specifications include 50 W × 4 continuous power output (RMS), 20 W × 4 RMS per channel at 4 Ω, 1.0 % THD, and front AUX input. The unit also features a 3‑band parametric iEQ, accelerated search via the volume knob, and selectable line and subwoofer outputs with level and frequency control.
| Maximum Power Output | 50W x 4 (continuous RMS) |
|---|---|
| RMS Power per Channel | 20W x 4 at 4Ω |
| Total Harmonic Distortion | 1.0% THD |
| Line Output Level | 2.5 V |
| Subwoofer Output Level | 2.5 V |
| Load Impedance | 4Ω (4‑8Ω allowable) |
| Installation Size | 7 3/16" x 4 3/8" x 6 5/16" (182 x 111 x 159.5 mm) |
Yes, the iPod/iPhone’s battery will be charged during connection.
The unit delivers 50 W × 4 continuous (RMS) power output.
Hold down the BACK key to switch operation; basic functions are controllable on the headunit even in iPod/iPhone mode.
