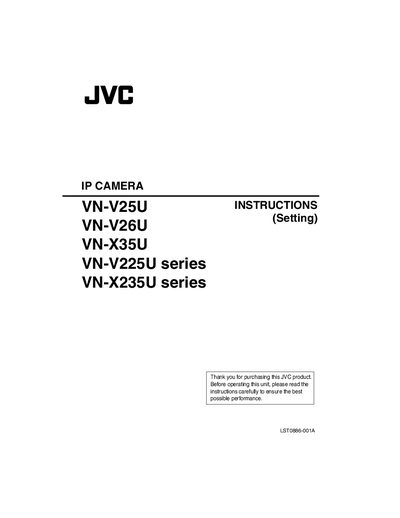

This manual introduces the network settings and operation methods of JVC IP cameras.
The manual guides users through the initial setup, configuration, and operation of JVC IP cameras in the VN‑V25U, VN‑V26U, VN‑X35U, VN‑V225U and VN‑X235U series. It covers getting started, built‑in viewer usage, PTZ settings, and detailed network configuration steps.
Key sections include network requirements, IP address configuration via Internet Explorer, streaming options for JPEG and MPEG4, audio settings, and troubleshooting tips for network issues, video playback, and monitor output.
| Maximum transmission bit rate | about 20 Mbps |
|---|---|
| Maximum number of simultaneous distributions | 20 streams (including multicast) |
| Audio stream data volume | 64 kbps per stream |
| Default IP address | 192.168.0.2 |
| Subnet mask | 255.255.255.0 |
| Supported operating system | Windows XP (SP2) or later |
| Required web browser | Internet Explorer 6.0 (or IE 7 on Vista) |
| Firmware version covered | V2.00 or later (VN‑V25U, VN‑V26U, VN‑X35U) |
The camera’s default IP address is 192.168.0.2.
The camera can handle up to 20 simultaneous streams, including multicast.
The maximum JPEG transmission bit rate is about 20 Mbps.
