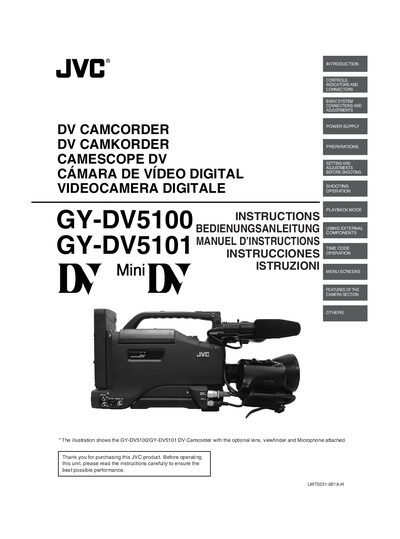

This is an instruction manual for the JVC GY-DV5100/GY-DV5101 DV Camcorder.
This manual covers the JVC GY-DV5100 and GY-DV5101 DV camcorders, professional‑grade video appliances designed for both standard‑size and mini DV cassettes. It includes safety precautions, recommended cable lengths, and environmental guidelines to ensure reliable performance and electromagnetic compatibility.
The document is organized into sections on controls and connectors, power supply, basic system connections, shooting and playback operations, time‑code functions, menu screen configuration, and routine maintenance. Optional accessories, battery packs, and specifications are listed at the end, along with troubleshooting tips.
| Operating weight | approximately 5.6 kg (including lens, viewfinder, battery, cassette) |
|---|---|
| Ambient temperature range | 0 °C – 40 °C |
| LCD monitor | 2.5‑inch colour LCD |
| Image sensor | 1/2" 3‑CCD, 440,000 effective pixels |
| Audio sampling | 16‑bit 48 kHz or 12‑bit 32 kHz PCM |
| Recording mode | SP mode only (LP mode not possible) |
No, the camcorder only records and plays back in SP mode; LP mode is not supported.
