MMZ series is lead-free chip resistor, with standardized package size, no preferred orientation, both flow and reflow soldering methods can be used, high reliability, low DC resistance structure, closed magnetic circuit structure, lead-free and environmental protection.

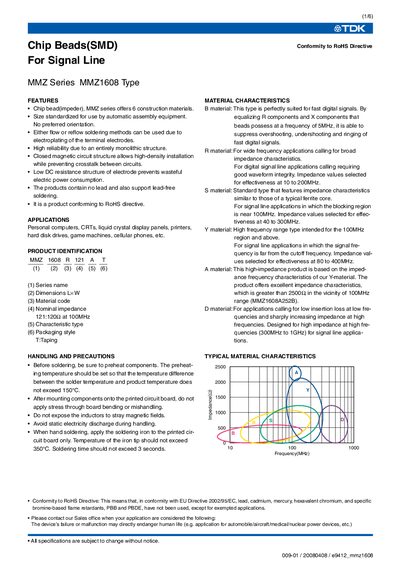

The MMZ1608 series chip beads are SMD components designed for signal‑line use in PCs, displays, printers, hard‑disk drives, game machines and mobile phones. They offer a closed magnetic circuit, low DC resistance, lead‑free construction and RoHS compliance, and can be mounted by flow or reflow soldering.
The sheet lists detailed dimensions, nominal impedance values, DC resistance per part number, recommended soldering temperatures, storage temperature range (55 °C to +125 °C), and packaging styles such as tape reels of 4 000 pieces per reel.
| Nominal impedance | 121 Ω – 1200 Ω at 100 MHz |
|---|---|
| DC resistance (MMZ1608B121C) | 0.15 Ω |
| Operating/storage temperature range | 55 °C to +125 °C |
The soldering iron tip should not exceed 350 °C.
Yes, the product conforms to the RoHS directive.
The temperature difference between solder and product must not exceed 150 °C.
