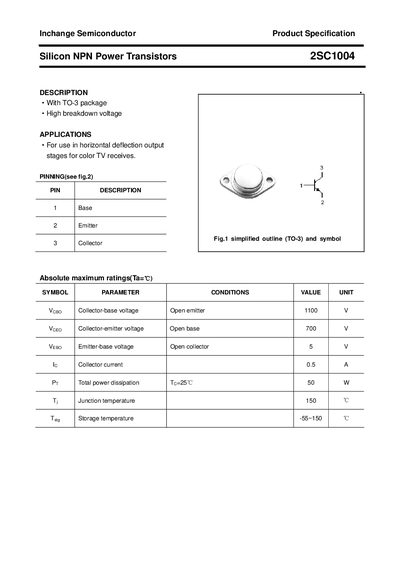

This document describes the product specifications and characteristics of Inchange Semiconductor's 2SC1004 Silicon NPN Power Transistors. The transistor is packaged in TO-3 and has a high breakdown voltage. It is suitable for use in the horizontal deflection output stages of color TV receivers. The main features include: collector-base breakdown voltage of 1100V, collector-emitter breakdown voltage of 700V, emitter-base breakdown voltage of 5V, maximum collector current of 0.5A, maximum power dissipation of 50W, and operating temperature range of -55°C to 150°C.
The 2SC1004 is a silicon NPN power transistor supplied in a TO‑3 metal case. It is intended for high‑voltage applications such as the horizontal deflection output stages of color TV receivers. The device features a high breakdown voltage and a simple three‑pin layout (Base, Emitter, Collector).
Key electrical characteristics include a collector‑base voltage of 1100 V, collector‑emitter voltage of 700 V, and a maximum collector current of 0.5 A. The transistor can dissipate up to 50 W at 25 °C, with a junction temperature rating of 150 °C and a storage temperature range of –55 °C to 150 °C. Additional parameters such as saturation voltages, DC current gain, and transition frequency are also listed.
| Collector‑base voltage (Vebo) | 1100 V |
|---|---|
| Collector‑emitter voltage (Veeo) | 700 V |
| Emitter‑base voltage (VeBo) | 5 V |
| Collector current (Ic) | 0.5 A |
| Total power dissipation (Pr) | 50 W |
| Junction temperature (Tj) | 150 °C |
| Storage temperature (Tstg) | -55~150 °C |
| Collector‑emitter sustaining voltage (Vce(sus)) | 700 V |
| Emitter‑base breakdown voltage | 5 V |
| Collector‑emitter saturation voltage (Vcesat) | 5.0 V |
| Base‑emitter saturation voltage (Vbesat) | 1.5 V |
| DC current gain (hFE) | 30‑160 |
| Transition frequency (ft) | 2.0 MHz |
The maximum collector‑emitter voltage is 700 V.
It is supplied in a TO‑3 metal package.
Pin 1 is Base, Pin 2 is Emitter, and Pin 3 is Collector.
The transistor can dissipate up to 50 W at a case temperature of 25 °C.
