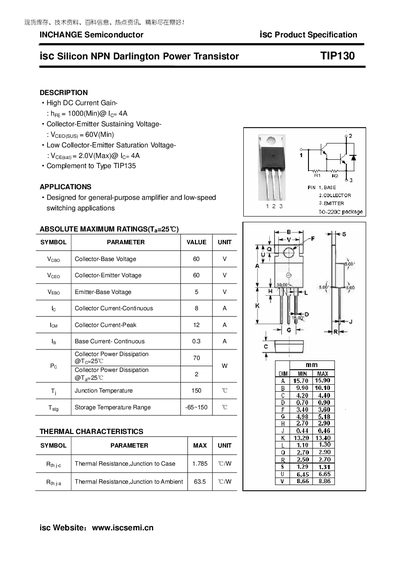

isc Silicon NPN Darlington Power Transistor TIP130 is a power transistor launched by isc company. It has the characteristics of high current gain, low collector-emitter saturation voltage, etc. It is suitable for general-purpose amplifiers and low-speed switching applications
The TIP130 is an NPN Darlington power transistor designed for general‑purpose amplifier and low‑speed switching applications. It offers high DC current gain and low saturation voltage, making it suitable for a variety of switching circuits.
The datasheet lists key electrical and thermal parameters, including a collector‑emitter sustaining voltage of 60 V, continuous collector current of 8 A (peak 12 A), and a maximum power dissipation of 70 W at 25 °C. Thermal resistance values and temperature limits are also provided for reliable design.
| Collector‑Emitter Sustaining Voltage (VCEO) | 60 V (min) |
|---|---|
| Collector‑Emitter Saturation Voltage (VCE(sat)) | 2.0 V (max) @ 4 A |
| Continuous Collector Current (IC) | 8 A |
| Peak Collector Current (IC peak) | 12 A |
| Maximum Power Dissipation | 70 W @ 25 °C |
The TIP130 can handle a continuous collector current of 8 A.
The saturation voltage is 2.0 V max when the collector current is 4 A.
The transistor can sustain up to 60 V between collector and emitter.
The device can dissipate up to 70 W at a case temperature of 25 °C.
