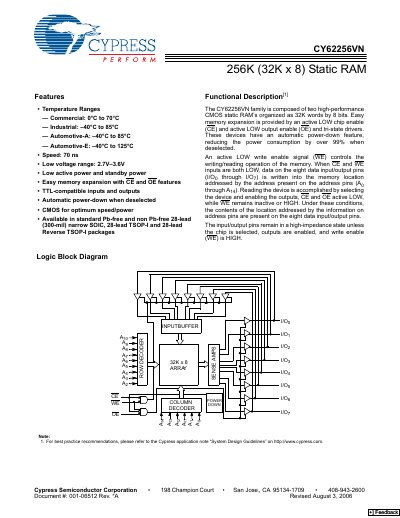

This document describes the features and characteristics of the 256K (32K x 8) Static RAM produced by Cypress Semiconductor Corporation, including temperature ranges, speed, low voltage range, low power consumption, easy memory expansion, TTL-compatible inputs and outputs, etc.
The CY62256VN static RAM offers 256 Kbits organized as 32 K × 8. It features low‑voltage operation (2.7 V–3.6 V), automatic power‑down when deselected, and TTL‑compatible I/O. The device supports multiple temperature ranges, from commercial (0 °C‑70 °C) to automotive‑E (‑40 °C‑125 °C).
The chip is available in several 28‑lead packages, including narrow SOIC, TSOP‑I, and reverse‑TSOP‑I, with both Pb‑free and non‑Pb‑free options. Key electrical characteristics include a 70 ns access time, typical operating supply current of 11 mA, and standby current as low as 0.1 µA.
| Memory organization | 32K × 8 (256 Kbits) |
|---|---|
| Access time (tRC) | 70 ns |
| Supply voltage range | 2.7 V–3.6 V |
| Operating temperature range (commercial) | 0 °C to 70 °C |
| Storage temperature range | ‑65 °C to +150 °C |
| Package types | 28‑lead narrow SOIC, TSOP‑I, Reverse TSOP‑I (Pb‑free and non‑Pb‑free) |
The CY62256VN has a 70 ns access time.
It operates from 2.7 V to 3.6 V.
It is offered in 28‑lead narrow SOIC, TSOP‑I, and reverse TSOP‑I packages, both Pb‑free and non‑Pb‑free.
