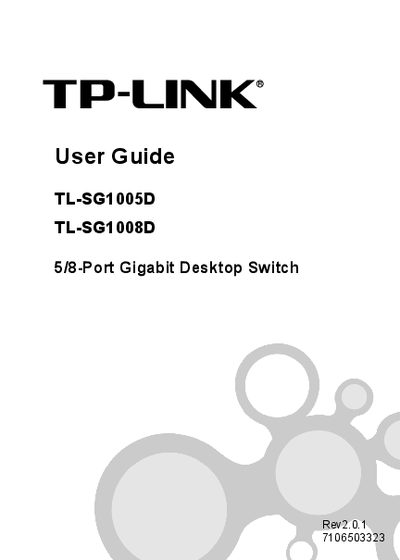

This manual introduces the function and usage of TL-SG1005D/TL-SG1008D 5/8-Port Gigabit Desktop Switch.
This guide provides an overview of the TP‑LINK TL‑SG1005D/TL‑SG1008D 5/8‑port Gigabit Desktop Switch, describing its plug‑and‑play operation, Green Ethernet power‑saving features, and non‑blocking switching architecture. It explains how the switch automatically negotiates speeds, supports Auto‑MDI/MDIX, and offers LED indicators for link and activity status.
The document includes sections on package contents, front and rear panel identification, detailed specifications, safety notices, FCC and CE compliance, and a troubleshooting appendix that helps resolve common issues such as power or link LED problems.
| Number of RJ45 ports | 5 (TL‑SG1005D) or 8 (TL‑SG1008D) |
|---|---|
| MAC address table size | 8K entries |
| Supported standards | IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Gigabit Ethernet data rate | 2000 Mbps full‑duplex |
| Operating temperature range | 0 °C to 40 °C |
Check that the AC power cord is properly connected to the switch and verify that the power source is turned on.
The TL‑SG1005D model provides five RJ45 ports.
The switch operates between 0 °C and 40 °C.
