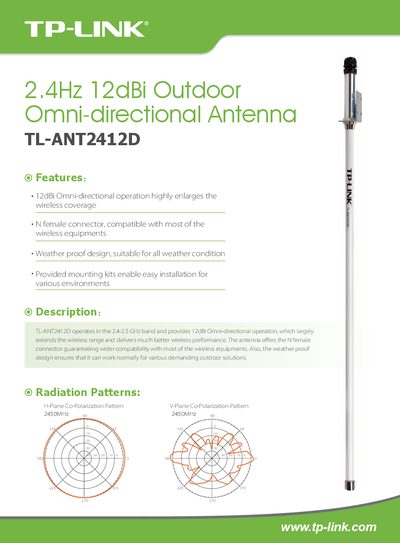

TL-ANT2412D is a 2.4-2.5GHz band 12dBi omni-directional antenna with wide compatibility and weatherproof design.
The TL-ANT2412D operates in the 2.4‑2.5 GHz band and provides 12 dBi omni‑directional coverage, extending wireless range for outdoor deployments. It features an N‑female (NJack) connector for broad compatibility and a weather‑proof construction suitable for all weather conditions.
Installation is simplified with provided mounting kits and includes a diagram for point‑to‑point outdoor use. The guide also lists technical specifications such as gain, polarization, impedance, and operating temperature, as well as compliance with RoHS and WEEE standards.
| Frequency | 24 ~ 2.5 GHz |
|---|---|
| Antenna Gain | 12 dBi |
| Polarization | Linear |
| Impedance | 50 Ω |
| Application | Outdoor |
| HPBW @ E-Plane | <= 12 Degree |
| Radiator Material | Cu & Zn‑Alloy |
| Body Material | Glass Fiber |
| Connector Type | NJack |
| Operation Temperature | -40°C~+65°C |
| Standards | RoHS, WEEE |
It operates in the 2.4‑2.5 GHz band.
The antenna provides a gain of 12 dBi.
It uses an N‑female (NJack) connector.
The antenna works from –40 °C to +65 °C.
