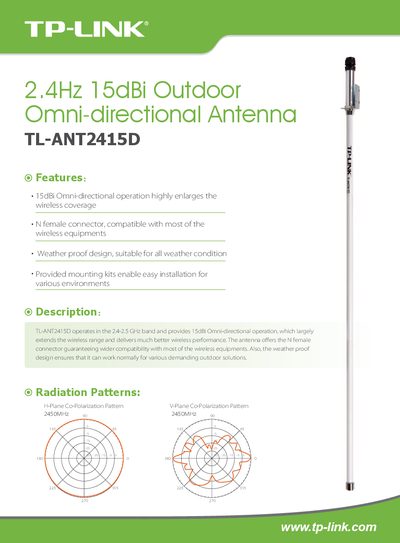

TL-ANT2415D is a 2.4-2.5 GHz band 15dBi Omni-directional Antenna with wide compatibility and weatherproof design.
The TL-ANT2415D is a 2.4‑2.5 GHz outdoor omni‑directional antenna offering 15 dBi gain, a weather‑proof design, and an N‑female connector for broad compatibility with wireless equipment. Its compact construction uses a copper‑zinc alloy radiator and a glass‑fiber plastic body, making it suitable for various outdoor installations.
The guide lists detailed specifications such as frequency range, antenna gain, polarization, impedance, and handling power, along with mounting kit information and compliance with RoHS and WEEE standards. Radiation patterns for both H‑plane and V‑plane are provided, and the package includes the antenna, mounting hardware, and this user guide.
| Frequency | 24 ~2.5 GHz |
|---|---|
| S.WAR. | <= 2.0 |
| Antenna Gain | 15 dBi |
| Polarization | Linear |
| Impedance | 50 Ohms |
| HBBW @ H-Plane | 360 Degree Omni-Directional |
| HPBW @ E-Plane | <= 9 Degree |
| Handle Power | 20 Watt |
| Material of Radiator | Cu & Zn-Alloy |
| Material of Plastic Body | Glass Fiber |
| Cable Type | RG 316D |
| Connector Type | N Jack |
| Connector Pull Test | >=8kg |
| Operation Temperature | -40°C~+ 65°C |
| Standards | RoHS, WEEE |
It operates in the 2.4‑2.5 GHz band.
The antenna provides a gain of 15 dBi.
It uses an N‑female (N Jack) connector.
The antenna can handle up to 20 Watt.
