The document introduces a standard recovery rectifier with high current capability, extremely low thermal resistance, and suitable for surface mount applications. It has high temperature soldering capability, up to 250 degrees Celsius for 10 seconds. Models are available in different voltage ratings. It has high stability and reliability.

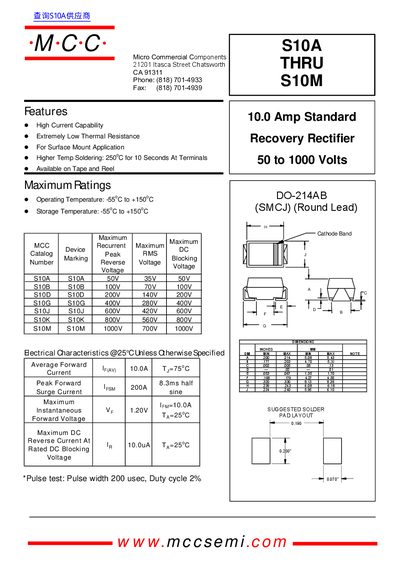

The S10A series from Micro Commercial Components is a high‑current, surface‑mount recovery rectifier available in tape‑and‑reel form. It offers low thermal resistance, a high temperature soldering capability of 250 °C for 10 seconds, and a standard forward current rating of 10 A.
The datasheet provides maximum ratings such as operating temperature from –55 °C to +150 °C, reverse voltage up to 1000 V for the S10M variant, and detailed electrical characteristics including forward voltage, surge current, and junction capacitance curves. Mechanical dimensions and suggested solder pad layout are also included.
| Peak Forward Current | 8.3 A |
|---|---|
| Surge Current (FSM) | 200 A |
| Operating Temperature Range | -55 °C to +150 °C |
| Storage Temperature Range | -55 °C to +150 °C |
| Maximum Reverse Voltage (S10M) | 1000 V |
| Maximum Reverse Voltage (S10A) | 50 V |
It can operate from –55 °C up to +150 °C.
The S10M variant is rated for a reverse voltage of 1000 V.
The device can be soldered at 250 °C for 10 seconds at the terminals.
