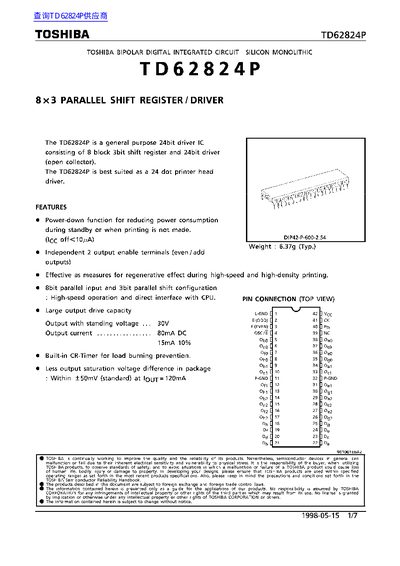

The TD62824P is a general‑purpose 24‑bit driver IC that combines eight 3‑bit shift registers with an open‑collector driver. It is intended for use as a 24‑dot printer‑head driver and includes features such as power‑down mode, independent output‑enable terminals, and a built‑in CR‑timer for load‑burn protection.
Key specifications include a 7.0 V supply voltage (max), 30 V output voltage, up to 750 kHz maximum operating frequency, and a power dissipation of 1.6 W. The device is supplied in a DIP42‑P‑600‑2.54 package weighing 6.37 g and is designed for operation from –55 °C to 150 °C storage temperature.
| Supply Voltage (Vcc) – max | 7.0 V |
|---|---|
| Output Voltage (VOUT) – max | 30 V |
| Maximum Operating Frequency | 750 kHz |
| Power Dissipation (Pb) | 1.6 W |
| Storage Temperature Range | -55 °C to 150 °C |
