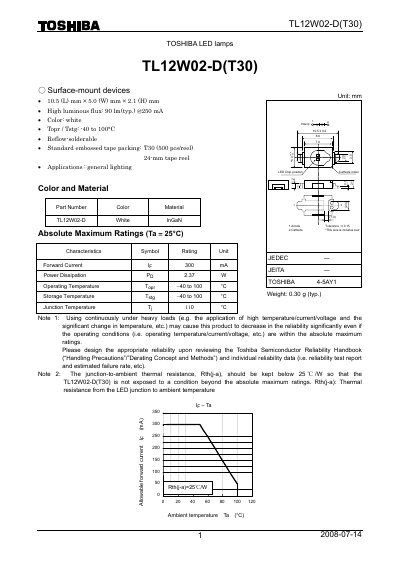

This document describes the features and characteristics of TOSHIBA LED lamps TL12W02-D(T30), including dimensions, luminous flux, color, operating temperature, etc.
This document describes the TL12W02-D(T30) surface‑mount LED from Toshiba. It lists absolute maximum ratings, electrical and optical characteristics, and recommended handling and storage conditions for reliable use.
The datasheet also details packaging dimensions, tape specifications, soldering profiles, and restrictions on product use, helping designers integrate the component safely into general lighting applications.
| Forward Voltage (typ) at 250 mA | 6.8 V |
|---|---|
| Forward Current (max) | 300 mA |
| Power Dissipation (max) | 2.37 W |
| Luminous Flux (typ) at 250 mA | 90 Im |
| Operating Temperature Range | -40 °C to 100 °C |
| Junction Temperature (max) | 110 °C |
| Thermal Resistance (junction‑to‑ambient, max) | 25 °C/W |
| Tape Type | T30 (8‑mm pitch) |
The maximum forward current is 300 mA.
