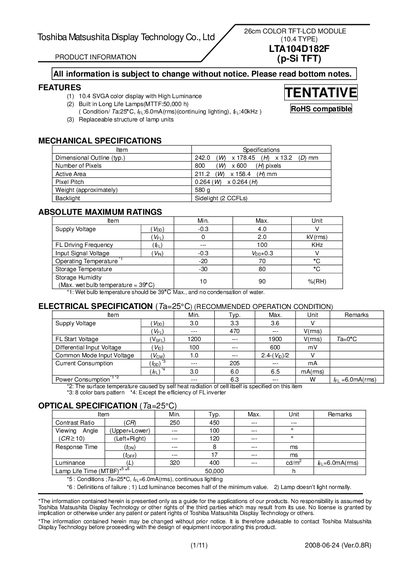

10.4-inch SVGA color display, high brightness, long life lamps (MTTF: 50,000 h) and replaceable lamp units
The LTA104D182F is a 10.4‑inch SVGA color TFT‑LCD module with high luminance and built‑in long‑life lamps. It offers an 800 × 600 pixel resolution, a compact 242 × 178 × 13 mm mechanical outline, and a typical power consumption of about 6.3 W.
The sheet lists mechanical, electrical, and optical specifications, connector pin assignments, timing charts, and extensive safety precautions. It also defines absolute maximum ratings and recommended operating conditions for reliable integration into equipment.
| Display size | 10.4 inch SVGA |
|---|---|
| Resolution | 800 × 600 pixels |
| Active area | 211.2 × 158.4 mm |
| Typical supply voltage | 3.3 V |
| Power consumption (typical) | 6.3 W |
| Contrast ratio (typical) | 450 |
| Lamp lifetime | 50,000 h |
| Operating temperature range | -20 °C to 70 °C |
| Weight | ≈580 g |
The typical supply voltage is 3.3 V, with a range from 3.0 V to 3.6 V.
The built‑in lamps have a mean time to failure of 50,000 hours.
