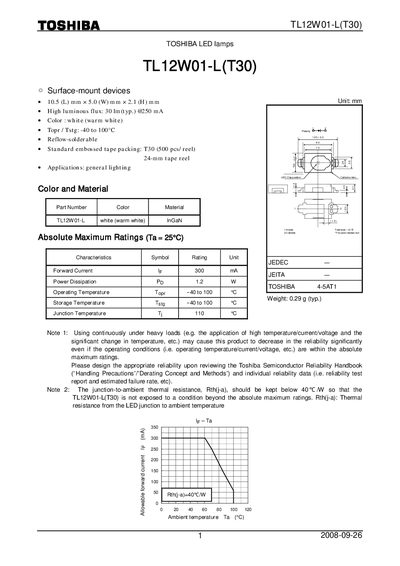

TL12W01-L(T30) is a surface mounted LED lamp produced by Toshiba. It has high luminous flux, wide temperature range and easy reflow welding. It is suitable for general lighting
This document provides detailed electrical and optical characteristics of the Toshiba TL12W01-L(T30) LED, including forward voltage, luminous flux, power dissipation, and thermal resistance. It also outlines recommended soldering profiles, cleaning solvents, and mounting precautions.
Packaging information, tape dimensions, reel specifications, and labeling requirements are described, along with storage conditions and restrictions on product use for safety and reliability.
| Forward Voltage (typ) | 3.4 V |
|---|---|
| Luminous Flux (typ) | 30 Im |
| Power Dissipation | 1.2 W |
| Operating Temperature Range | -40 to 100 °C |
| Thermal Resistance (junction‑to‑ambient) | < 40 °C·W |
The devices should be stored at 5 °C to 30 °C before soldering.
The reverse current is limited to 40 pA at a reverse voltage of 4 V.
Each reel contains 500 pieces of the TL12W01-L(T30) LED.
