This document provides information on the mechanical and electrical specifications of a product. The product has dimensions of 110.0(W) x 22.0(H) x 10.0(Max.)(D) mm and weighs approximately 25g. It is applicable to TFT modules LTD104C11S, LTD121GA0S, LTD121C30S. The document includes absolute maximum ratings such as supply voltage and operating temperature, as well as electrical specifications such as input current, output voltage, and frequency.

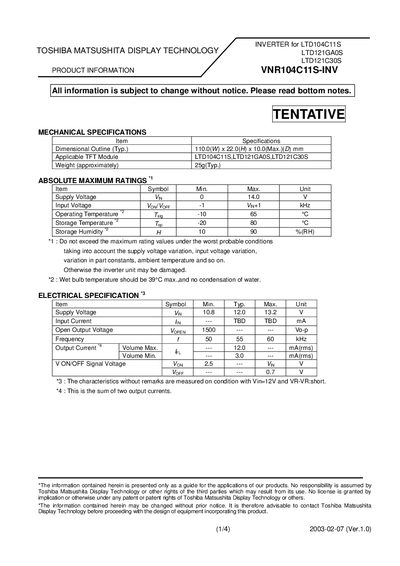

This product information sheet describes the Toshiba VNR104C11S-INV inverter used with TFT modules such as LTD1040118, LTD121GA0S and LTD121C30S. It includes mechanical dimensions, weight, and absolute maximum ratings for safe operation.
The document lists electrical specifications (supply voltage, output current, ON/OFF signal voltage), a schematic diagram of the inverter connection, and detailed connector pin assignments for both the input signal and CCFL power source interfaces.
| Dimensional Outline (Typ.) | 110.0 mm (W) × 22.0 mm (H) × 10.0 mm (D) |
|---|---|
| Weight (approx.) | 25 g |
| Supply Voltage (typ.) | 12.0 V |
| Supply Voltage Range | 10.8 V – 13.2 V |
| Operating Temperature | -10 °C to 65 °C |
| Output Current (max) | 12.0 mA rms |
| Output Current (min) | 3.0 mA rms |
| ON/OFF Signal Voltage | 2.5 V |
The inverter operates with a supply voltage between 10.8 V and 13.2 V, with a typical value of 12.0 V.
Connector CN1 (input signal) uses pins: 1 Vin (12.0 V typical), 2 Vin (12.0 V typical), 3 GND, 4 GND, 5 ON/OFF (H/L), 6 VR (potentiometer), 7 VR (potentiometer), 8 Vat (alarm signal).
The maximum output current is 12.0 mA rms.
The inverter measures 110.0 mm wide, 22.0 mm high, and up to 10.0 mm deep.
