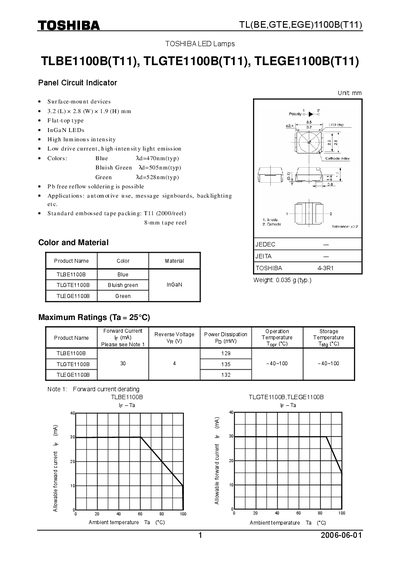

This document is about TLBE1100B, TLGTE1100B and TLEGE1100B, three LED lamp products. These three LED lights are surface mount devices, the size is 3.2 (L) × 2.8 (W) × 1.9 (H) mm, with flat-top design, the light-emitting material is InGaN, the light colors are blue, bluish green and green, with high luminous intensity, low drive current and other characteristics, and can be applied to automotive, message signboards, backlighting and other occasions.
This document provides the electrical and optical characteristics of Toshiba TL(BE,GTE,EGE)1100B(T11) LED lamps, including forward voltage, forward current, luminous intensity, and peak emission wavelength. It also details packaging, handling, storage, and recommended soldering procedures for reliable assembly.
Additional sections cover tape and reel dimensions, label formats, cleaning solvent recommendations, and restrictions on product use, helping designers integrate these LEDs safely into automotive, signage, and backlighting applications.
Store the unopened moisture‑proof bag at 5 °C – 30 °C with a maximum humidity of 90 %.
Use a maximum temperature of 240 °C for the first reflow and up to 260 °C for subsequent steps.
Approved solvents include ASAHI CLEAN AK‑225AES, KAO CLEAN TROUGH 750H, and PINE ALPHA ST‑1008.
