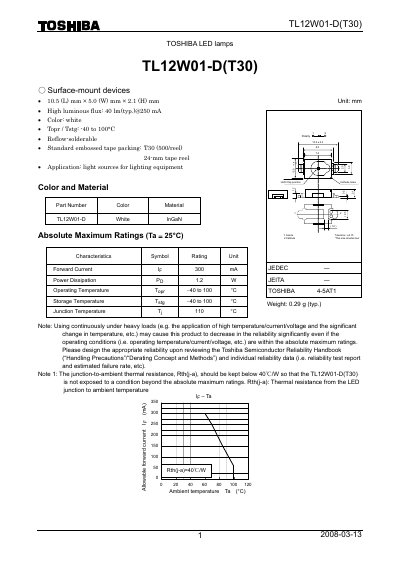

The TL12W01-D(T30) is a surface-mount LED lamp from Toshiba. It measures 10.5 (L) mm × 5.0 (W) mm × 2.1 (H) mm and has a high luminous flux of 40 lm(typ.)@250 mA. The color is white, the temperature range is -40 to 100°C, and it can be reflow-soldered. The standard embossed tape packing is T30 (500/reel) 24-mm tape reel.
The TL12W01‑D(T30) is a surface‑mount white InGaN LED lamp designed for general display lighting. It provides a typical luminous flux of 40 lm at 250 mA and operates over a wide temperature range.
The document lists electrical and optical characteristics, packaging details, recommended soldering profiles, handling precautions, and usage restrictions for the component.
| Luminous flux (typ.) | 40 lm @ 250 mA |
|---|---|
| Forward voltage (typ.) | 3.4 V @ 250 mA |
| Forward current (max) | 300 mA |
| Power dissipation (max) | 1.2 W |
| Operating temperature range | -40 °C to 100 °C |
| Storage temperature range | -40 °C to 100 °C |
| Junction temperature (max) | 110 °C |
| Weight (typ.) | 0.29 g |
| Package dimensions | 10.5 mm L × 5.0 mm W × 2.1 mm A |
| Tape type | T30 (8‑mm pitch, 500 pcs/reel) |
| Recommended storage temperature (pre‑soldering) | 5 °C to 30 °C |
| Maximum reflow soldering temperature (Pb‑free) | 260 °C |
The LED delivers about 40 lm at a forward current of 250 mA.
The absolute maximum forward current is 300 mA.
Store it at 5 °C to 30 °C with humidity not exceeding 90 % (max).
For Pb‑solder use up to 240 °C, and for Pb‑free solder up to 260 °C.
