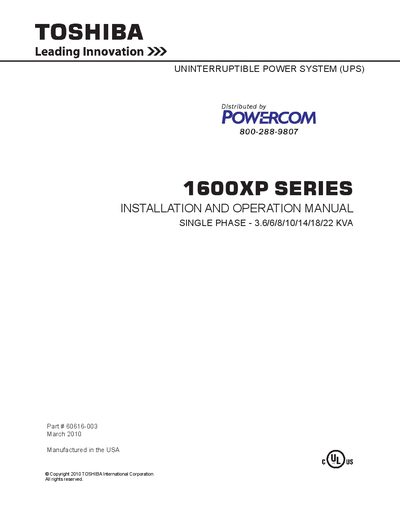

Toshiba 1600XP Series Installation and Operation Manual

This manual describes the installation and operation of 1600Xp Series uninterruptible power supply (UPS) single phase.

Brand: Toshiba
Category: Industrial Supply
Document type: Installation Guide
Language: English
Pages: 80
File format: PDF
File size: 2.4 MB
Published: 03 May, 2012
Updated: 30 September, 2023
MD5 checksum: 8A5001463928711CFE50BCFE4209BFFB
PDF: Toshiba 1600XP Series Installation and Operation Manual PDF

About this manual

This manual explains how to safely install, operate, and maintain the Toshiba 1600XP Series uninterruptible power system. It includes general safety instructions, qualified‑personnel requirements, and warranty information.

The document covers installation precautions, wiring and grounding, UPS connections, operating modes, preventive maintenance, and dimensional data. It also provides contact details for Toshiba Customer Support and optional accessories.

What's inside

General Safety Instructions
Installation Precautions
Conductor Routing and Grounding
UPS Connections
UPS Specifications
Operating Modes
Preventive Maintenance/Parts Replacement
External Layouts and Dimensions

Specifications

Power Rating	3.6‑22 kVA (single phase)
Part Number	60616-003
Battery Warranty	24 months from shipment date

Frequently asked questions

What qualifications are required for personnel installing the UPS?

Qualified personnel must have the skills, knowledge, and safety training required for installation, operation, and maintenance.

How can I contact Toshiba Customer Support for UPS assistance?

You can call the USA toll‑free number (877) 867‑8773, Monday through Friday, 8 a.m.‑5 p.m. CST.

Download PDF (2.4 MB)
