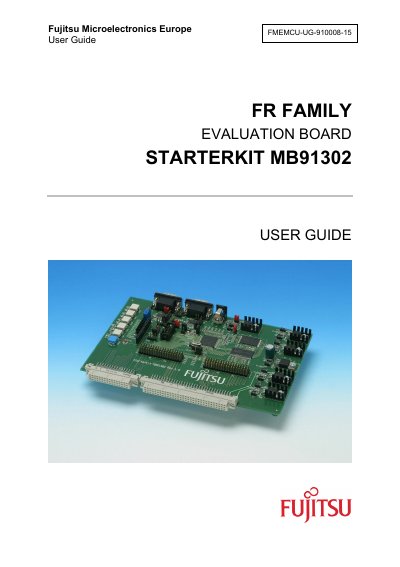

This document is about STARTERKIT MB91302 USER GUIDE user manual
The Fujitsu MB91302 Evaluation Board Starter Kit is a multifunctional development platform for the 32‑bit Flash microcontroller MB91302 series. It can be used as a stand‑alone evaluation board or as a target board for the MB2198‑01 emulator, providing immediate access to hardware and software resources.
The guide details hardware installation, power‑supply configuration, jumper settings, connector pin‑outs, software installation of Softune Workbench, programming of the external flash, and troubleshooting procedures. It also lists related documents, application notes, and contact information for Fujitsu Microelectronics Europe.
| On‑board Flash memory | 64 Mbit |
|---|---|
| On‑board SDRAM | 64 Mbit |
| Main crystal frequency | 15 MHz |
| CPU clock (when programmed) | 60 MHz |
| Peripheral clock | 30 MHz |
| Power‑supply input | 6 V‑9 V DC, 500 mA (8 V‑9 V, 1500 mA with graphic sub‑boards) |
| UART interfaces | 2 (UART0, UART1) |
| User LEDs | 8 |
A DC input of 6 V‑9 V at 500 mA is recommended (8 V‑9 V at 1500 mA when graphic sub‑boards are used).
The board provides two UART interfaces, UART0 and UART1.
It includes 64 Mbit of Flash memory and 64 Mbit of SDRAM.
The main crystal operates at 15 MHz.
