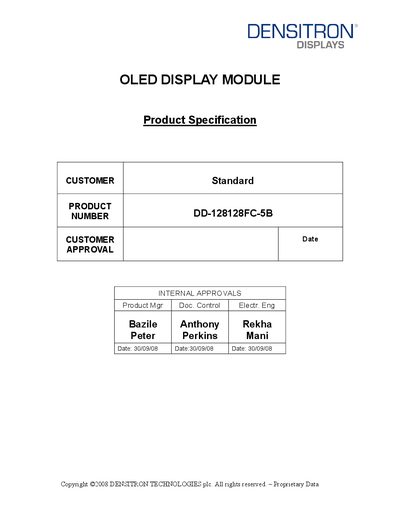

This is the product specification of DD-128128FC-5B OLED DISPLAY MODULE issued by DENSITRON TECHNOLOGIES plc.
The DD-128128FC-5B is a 1.5‑inch passive‑matrix OLED display with a 128 × 128 RGB pixel matrix, 262,144 colours and a compact size of 33.8 × 34.00 × 1.60 mm. It operates from –30 °C to +70 °C and uses the SSD1355 driver IC.
The document details mechanical and electrical specifications, reliability test results, and safety and handling precautions. It also includes pin assignments, timing characteristics, power‑up/down sequences, and packaging information for designers and integrators.
| Display Format | 128 (RGB) x 128 Dots |
|---|---|
| Overall Dimensions | 33.8 x 34.00 x 1.60 mm |
| Colour | 262,144 Colour |
| Operating Temperature | -30 ~ +70 °C |
| Supply Voltage for Operation (Va) | -0.3 to 4 V |
| Operating Current for Vcc (Icc) | 35 mA |
| Weight | 3.85 g |
| Driver IC | SSD1355 |
| Lifetime | more than 10,000 hours |
The module’s supply voltage for operation (Va) is rated from –0.3 V to 4 V, and the supply voltage for logic (Vpp) is –0.5 V to 2.75 V.
Clean the surface gently with a soft cloth soaked in isopropyl alcohol, ethyl alcohol, or trichlorotrifluoromethane, and keep the module grounded to prevent static discharge.
