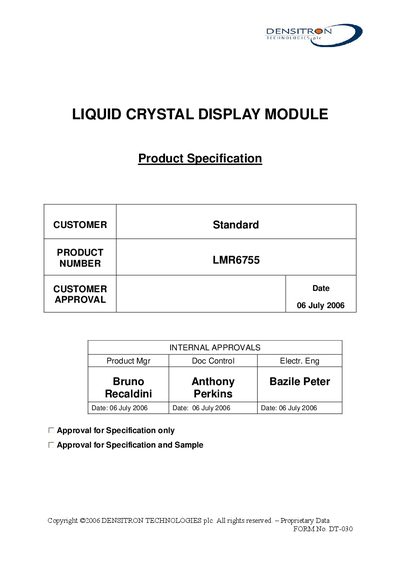

This document is the product specification of LMR6755 liquid crystal display module produced by DENSITRON TECHNOLOGIES plc. The main contents include product features, mechanical characteristics, electrical characteristics, timing characteristics, optical characteristics, backlight characteristics, quality assurance characteristics, reliability characteristics, part number descriptions and handling precautions.
The LMR6755 is a 320 × 240‑dot liquid crystal display module with STN/FSTN technology, CCFL white backlight and optional DC/DC converter. Main features include a compact size of 165.5 × 109 × 14 mm, operating temperature from –20 °C to +70 °C, and RoHS compliance.
The handbook contains sections on mechanical and electrical specifications, pin assignments, optical and backlight data, quality and reliability tests, part numbers for optional options, and detailed handling and storage precautions to ensure reliable operation and long life.
| Display Format | 320 x 240 dots |
|---|---|
| Overall Dimensions | 165.5 x 109 x 14 mm |
| Operating Temperature | -20 ~ +70 °C |
| Backlight Type | CCFL (white) |
| Driver IC | 1D13700 |
The module operates from –20 °C to +70 °C.
It uses a white CCFL backlight.
Store the display in a dark place at about 25 °C ± 10 °C with humidity below 50 % RH.
