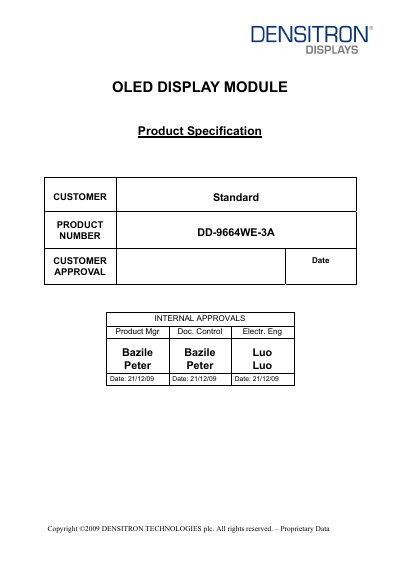

This document is the product specification of OLED display module. It mainly introduces the main features, characteristics and parameters of the product.
The DD-9664WE-34 is a 96 × 64‑dot passive‑matrix OLED display with an active area of 19.953 × 13.424 mm and overall dimensions of 24.90 × 22.95 × 1.40 mm. It uses the SSD1305 driver IC and operates at a typical logic voltage of 2.8 V, with a supply voltage range up to 15 V for the display.
The module’s absolute maximum ratings include a logic supply voltage of –0.3 V to 4 V, operating temperature from –30 °C to +70 °C, and storage temperature from –40 °C to +80 °C. Recommended handling includes storing in static‑electricity‑preventive bags, avoiding direct sunlight, high humidity, and using a 0.5 A fuse for over‑current protection.
| Display Format | 96 x 64 Dots |
|---|---|
| Overall Dimensions (W×H×T) | 24.90 x 22.95 x 1.40 mm |
| Viewing Area | 21.953 x 15.424 mm |
| Driver IC | SSD1305 |
| Supply Voltage for Logic (absolute max) | -0.3 to 4 V |
| Supply Voltage for Display (absolute max) | 0 to 15 V |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Weight | 1.65 g |
| Dot Pitch | 0.208 x 0.21 mm |
| Recommended Fuse Value | 0.5 A |
The absolute maximum supply voltage for the display is 15 V.
The module can operate from –30 °C up to +70 °C.
The module uses the SSD1305 driver IC.
