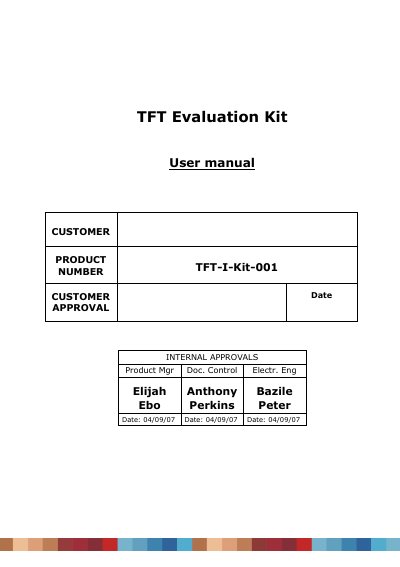

Describes how to use Densitron Kyocera TFT evaluation kit
This manual describes the Densitron TFT‑I‑Kit‑001 evaluation kit, which includes a Kyocera 10.4" TFT panel, an AMD Geode LX SBC, a CCFL inverter, power supply, cables and a documentation CD. It explains how to unpack, connect the display, inverter, power supply and SBC, and how to configure jumpers and BIOS settings.
The document is organized into sections covering an introduction, kit setup, mechanical and electrical parameters of the TFT panel, specifications and installation of the EDD50200/IB520 SBC, BIOS and driver installation, watchdog timer configuration, interrupt request lines, and technical support contact information.
| TFT panel dimensions | 243 x 185.1 x 10.5 mm |
|---|---|
| TFT panel power supply voltage (VDD) | 3.0 V min – 5.25 V max (typ 3.3/5.0 V) |
| TFT panel power supply current (white) | 495 mA |
| TFT panel dot pitch | 0.11 x 0.33 mm |
| Recommended power supply for kit | 12 V 5 A |
| SBC CPU | AMD Geode LX 433 MHz (LX700) or 500 MHz (LX800) |
| SBC memory | 1 DDR SO‑DIMM socket, up to 1 GB |
| SBC Ethernet | Realtek RTL8100C 10/100 Mbps |
| SBC USB ports | 4 USB 2.0 ports |
| SBC dimensions | 145 mm x 102 mm |
The IB520 SBC includes four USB 2.0 ports.
A 12 V, 5 A power supply is recommended.
