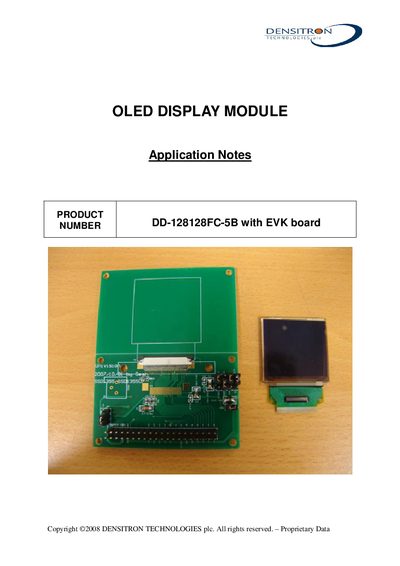

Densitron DD-128128FC-5B OLED Display Module Application Notes
These application notes provide detailed information for the Densitron DD-128128FC-5B OLED display module and its evaluation board. The document includes EVK and DC‑DC schematics, timing characteristics, connection diagrams, power‑up/down sequences, and recommended initial code for using the module.
The note defines all relevant pins, such as the MCU interface selection pins (BS0‑BS3), reset (RES#), chip select (CS#), and power pins (VCC, VDD, VDDIO, VSL, VCOMH). Example C functions for writing commands and data over an 80‑series CPU interface are also provided.
Densitron DD-128128FC-5B specifications
| Display Format | 128 (RGB) x 128 Dots |
|---|---|
| Overall Dimensions | 33.8 x 34.00 x 1.60 mm |
| Colour | 262,144 Colour |
| Operating Temperature | -30 ~ +70 °C |
| Supply Voltage for Operation (Va) | -0.3 to 4 V |
| Operating Current for Vcc (Icc) | 35 mA |
| Weight | 3.85 g |
| Driver IC | SSD1355 |
| Lifetime | more than 10,000 hours |
Source: Densitron DD-128128FC-5B OLED Display Module Datasheet
All Densitron DD-128128FC-5B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
Which pins configure the MCU interface selection?
Pins BS0, BS1, BS2 and BS3 are used to configure the MCU interface selection; BS2 and BS3 are controlled by software command 0x36.
From: Densitron DD-128128FC-5B OLED Display Module Application Notes
How do you reset the OLED driver chip?
Pull the RES# pin low to reset and initialize the chip.
From: Densitron DD-128128FC-5B OLED Display Module Application Notes
What are the absolute maximum supply voltage ratings for the DD-128128FC-5B module?
The module’s supply voltage for operation (Va) is rated from –0.3 V to 4 V, and the supply voltage for logic (Vpp) is –0.5 V to 2.75 V.
From: Densitron DD-128128FC-5B OLED Display Module Datasheet
How should the OLED display be cleaned and handled to avoid damage?
Clean the surface gently with a soft cloth soaked in isopropyl alcohol, ethyl alcohol, or trichlorotrifluoromethane, and keep the module grounded to prevent static discharge.
From: Densitron DD-128128FC-5B OLED Display Module Datasheet
