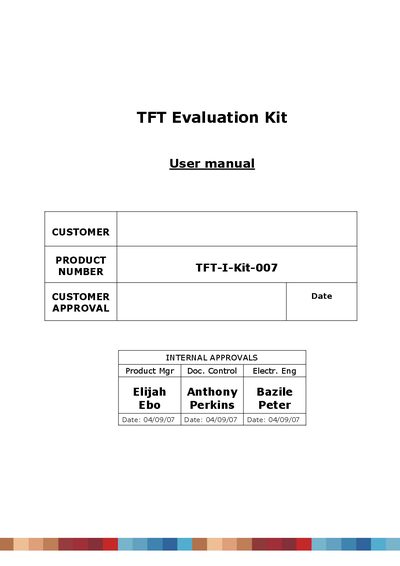

This is a user manual for Densitron Kyocera TFT evaluation kit, which introduces how to set up and use the evaluation kit
This manual describes the Densitron Kyocera TFT evaluation kit, which includes a 5.7" Kyocera TFT panel, driver card, power supply, FFC cable and a DC‑DC converter. It outlines the kit contents and gives safety and handling guidance for static‑free assembly.
The guide walks the user through unpacking, connecting the display to the driver card with the keyed 33‑way FFC cable, setting jumpers, powering the system with the supplied 24 V supply and DC‑DC converter, and selecting the video input via VGA or DVI. Technical specifications and interface signal definitions are also provided.
