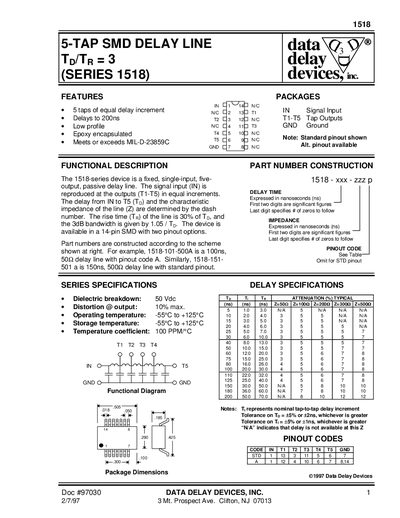

The 1518 series device is a fixed, single-input, five-output, passive delay line. The signal input (IN) is reproduced at the outputs (T1-T5) in equal increments. The delay from IN to T5 (TD) and the characteristic impedance of the line (Z) are determined by the dash number.
The 1518‑series device is a fixed, single‑input, five‑output passive delay line. The input signal is reproduced at five tap outputs (T1‑T5) with equal incremental delays, offering up to 200 ns total delay. It is supplied in a 14‑pin SMD package with two optional pinout configurations.
Key specifications include operating temperatures from –55 °C to +125 °C, a temperature coefficient of 100 ppm/°C, and a characteristic impedance of 100 Ω. Test conditions specify a rise/fall time limit of 3.0 ns and detailed pulse‑width and period requirements for performance verification.
| Number of taps | 5 |
|---|---|
| Maximum delay | 200 ns |
| Package type | 14‑pin SMD |
| Operating temperature range | -55°C to +125°C |
| Storage temperature range | -55°C to +125°C |
| Temperature coefficient | 100 ppm/°C |
| Rise/Fall time (max) | 3.0 ns |
The device can provide a total delay of up to 200 ns.
It has five taps with equal incremental delay.
The device operates from –55 °C up to +125 °C.
They are supplied in a 14‑pin SMD package with two pinout options.
