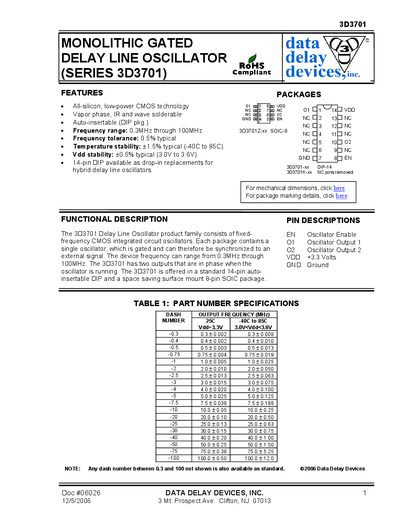

The 3D3701 Delay Line Oscillator product family consists of fixed-frequency CMOS integrated circuit oscillators. Each package contains a single oscillator, which is gated and can therefore be synchronized to an external signal. The device frequency can range from 0.3MHz through 100MHz.
The 3D3701 series oscillator is an all‑silicon, low‑power CMOS device offered in 14‑pin DIP and 8‑pin SOIC packages. It provides a gated output that can be synchronized to an external signal, with a frequency range from 0.3 MHz to 100 MHz.
The handbook includes functional descriptions, pin definitions, detailed electrical characteristics, absolute maximum ratings, and recommended test conditions. It also explains temperature and supply‑voltage compensation circuitry that keeps frequency variation within ±1.5 % over –40 °C to 85 °C and ±0.5 % over a 3.0 V to 3.6 V supply range.
| Frequency range | 0.3 MHz – 100 MHz |
|---|---|
| Frequency tolerance | 0.5 % typical |
| Vdd stability | +0.5 % typical (3.0 V to 3.6 V) |
| Temperature stability | +1.5 % typical (-40 °C to 85 °C) |
| Static supply current | 5.5 mA max |
| High level input voltage | 2.0 V |
| Low level input voltage | 0.8 V |
| Output rise/fall time | 2.5 ns max |
| Maximum supply voltage | 7.0 V |
| Storage temperature range | -55 °C to 150 °C |
The oscillator operates from 0.3 MHz up to 100 MHz.
Frequency varies by about +1.5 % typical over the –40 °C to 85 °C range.
The static supply current is specified as up to 5.5 mA.
