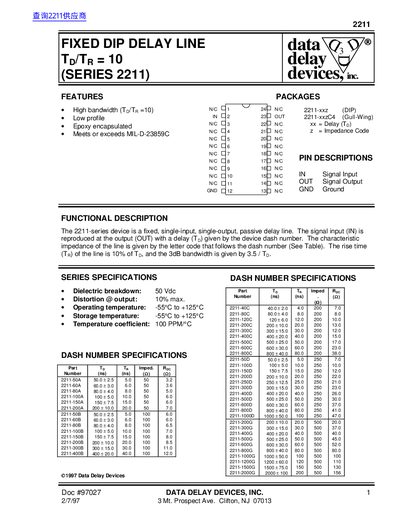

This document describes the features and characteristics of the 2211 series fixed DIP delay line from DATA DELAY DEVICES, INC. The product has high bandwidth, low profile, epoxy encapsulation, and meets or exceeds the MIL-D-23859C standard.
The 2211 series devices are fixed, single‑input, single‑output passive delay lines offered in DIP and gull‑wing packages. The signal input is reproduced at the output with a delay defined by the part number, and the characteristic impedance is indicated by the letter code following the dash.
The document provides detailed specifications such as dielectric breakdown, distortion, temperature ranges, and a full table of part numbers with their corresponding delay, rise/fall times, and impedance codes, as well as test conditions for verifying performance.
| Dielectric breakdown | 50 Vde |
|---|---|
| Distortion @ output | 10% max. |
| Operating temperature | -55°C to +125°C |
| Storage temperature | -55°C to +125°C |
| Temperature coefficient | 100 PPM/°C |
| Rise time (Tp) | 10% of delay |
| 3dB bandwidth | 3.5 / Tp |
The rise time is 10% of the specified delay (Tp).
The device operates from –55 °C to +125 °C.
The dielectric breakdown rating is 50 Vde.
It is given by the letter code that follows the dash number in the part number.
