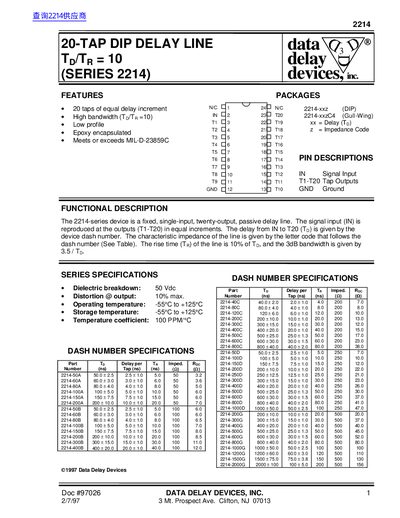

The 2214 series 20-TAP DIP delay line has 20 equal delay increments, high bandwidth (TD/TR = 10), low profile, epoxy encapsulated, meets or exceeds MIL-D-23859C standard.
The 2214‑series device is a fixed, single‑input, twenty‑output passive delay line. The signal input is reproduced at the twenty tap outputs (T1‑T20) in equal increments, with a rise time equal to 10% of the pulse width and a 3 dB bandwidth of 3.5/Tp. It offers high bandwidth (Tp/Ta = 10), low profile epoxy encapsulation, and meets MIL‑D‑23859C.
The line is offered in DIP (2214‑xxz) and Gull‑Wing (2214‑xxzC4) packages, with detailed pin descriptions and dimensions. Test specifications include operation at –55 °C to +125 °C, dielectric breakdown of 50 V, and defined output levels and timing under standard test conditions.
| Number of taps | 20 |
|---|---|
| Bandwidth ratio (Tp/Ta) | 10 |
| Rise time (Ta) | 10% of Tp |
| Dielectric breakdown | 50 V |
| Operating temperature range | -55°C to +125°C |
| Output distortion | 10% max |
It is a fixed, single‑input, twenty‑output passive delay line with equal‑increment tap outputs.
The device is offered in DIP (2214‑xxz) and Gull‑Wing (2214‑xxzC4) packages.
