The ADL5363 is a balanced mixer with a frequency range of 2300 MHz to 2900 MHz. It features low power conversion loss, low SSB noise figure, and high input IP3. The ADL5363 supports single-ended operation and is suitable for applications such as cellular base station receivers, transmit observation receivers, and radio link downconverters.
The ADL5363 is a highly linear, doubly balanced passive mixer with integrated RF and LO balancing circuitry, supporting single‑ended operation over a 2300 MHz to 2900 MHz RF range. It offers low conversion loss, high isolation, and excellent intermodulation performance for cellular base‑station receivers and radio link downconverters.

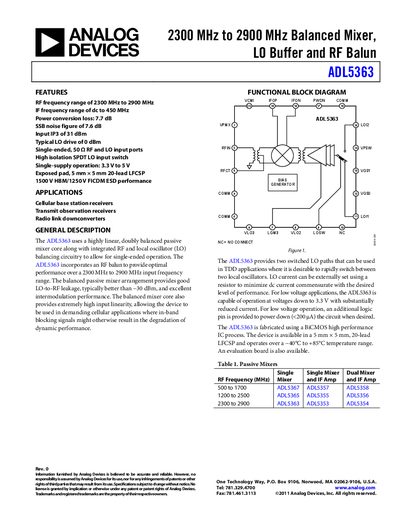

Key features include a single‑supply voltage of 3.3 V to 5 V, 7.7 dB typical power conversion loss, 7.6 dB SSB noise figure, and an input third‑order intercept point of 31 dBm. The device is supplied in a 5 mm × 5 mm 20‑lead LFCSP and operates from –40 °C to +85 °C. The datasheet contains detailed pin descriptions, performance graphs, absolute maximum ratings, and ordering information.
| RF Frequency Range | 2300 MHz to 2900 MHz |
|---|---|
| IF Frequency Range | dc to 450 MHz |
| Power Conversion Loss | 7.7 dB |
| SSB Noise Figure | 7.6 dB |
| Input IP3 | 31 dBm |
| Supply Voltage (single‑supply operation) | 3.3 V to 5 V |
| Maximum Supply Voltage (absolute rating) | 5.5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Maximum LO Input Level | 13 dBm |
The ADL5363 operates over an RF frequency range of 2300 MHz to 2900 MHz.
It can be powered from a single supply of 3.3 V to 5 V.
The absolute maximum LO input level is 13 dBm.
Typical LO drive is 0 dBm.
