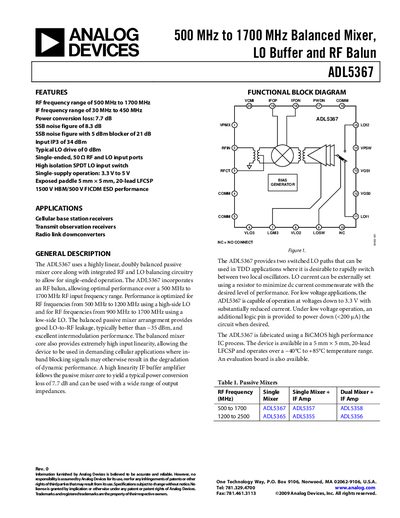

The ADL5367 is a 500 MHz to 1700 MHz balanced mixer with LO buffer and RF balun. It features high linearity, high isolation and low power consumption.
The ADL5367 balanced mixer integrates a passive doubly‑balanced mixer core with RF and LO balancing circuitry, supporting single‑ended operation over a 500 MHz to 1700 MHz RF range. It includes an on‑chip RF balun, high isolation LO switch, and a low‑noise IF buffer, delivering typical power conversion loss of 7.7 dB.
The device operates from a single supply of 3.3 V to 5 V, offers two switched LO paths for TDD applications, and is available in a 5 mm × 5 mm 20‑lead LFCSP package. Absolute maximum ratings, pin functions, and performance curves for 5 V and 3.3 V operation are provided in the datasheet.
| RF Frequency Range | 500 MHz – 1700 MHz |
|---|---|
| IF Frequency Range | 30 MHz – 450 MHz |
| LO Frequency Range | 730 MHz – 1670 MHz |
| Power Conversion Loss (5 V) | 7.7 dB |
| SSB Noise Figure (5 V) | 8.3 dB |
| Input Third‑Order Intercept (IIP3) | 34 dBm |
| Supply Voltage Range | 3.3 V – 5 V |
| Quiescent Current (5 V) | 97 mA |
| Operating Temperature Range | -40 °C to +85 °C |
The ADL5367 operates from 500 MHz to 1700 MHz.
It can run from a single supply of 3.3 V up to 5 V.
Typical power conversion loss is 7.7 dB.
The absolute maximum RF input level is 20 dBm.
