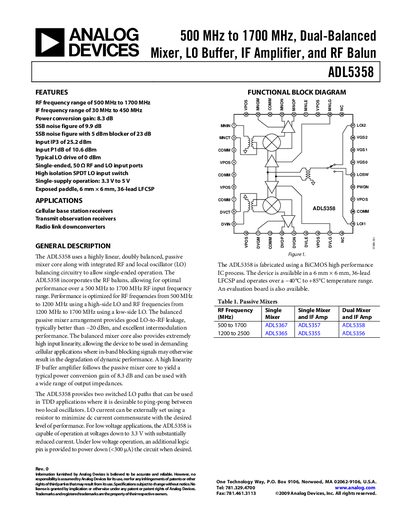

The document introduces the ADL5358 product from Analog Devices. The product is a dual-balanced mixer with an RF frequency range of 500 MHz to 1700 MHz and an IF frequency range of 30 MHz to 450 MHz. It has a power conversion gain of 8.3 dB, a SSB noise figure of 9.9 dB, an input IP3 of 25.2 dBm, and an input P1dB of 10.6 dBm. The product also features single-ended operation, high isolation SPDT LO input switch, single-supply operation, and a 6 mm × 6 mm package.
The ADL5358 is a dual‑balanced mixer, LO buffer, IF amplifier and RF balun designed for cellular base‑station receivers, transmit‑observation receivers and radio‑link downconverters. It integrates passive mixer cores with RF and LO balancing circuitry, offering single‑ended operation over a 500 MHz to 1700 MHz RF input range.
Key features include a typical power conversion gain of 8.3 dB, SSB noise figure of 9.9 dB (5 V operation), input 1 dB compression point of 10.6 dBm, and operation from 3.3 V to 5 V with a quiescent current of 350 mA. The device is supplied in a 6 mm × 6 mm, 36‑lead LFCSP package and is RoHS compliant.
| RF Frequency Range | 500 MHz – 1700 MHz |
|---|---|
| Power Conversion Gain (typical) | 8.3 dB |
| SSB Noise Figure (typical, 5 V) | 9.9 dB |
| Input 1 dB Compression Point (IP1dB) | 10.6 dBm |
| Supply Voltage Range | 3.3 V – 5 V |
| Quiescent Current (5 V) | 350 mA |
The ADL5358 operates from 500 MHz to 1700 MHz.
It can be powered from a single supply between 3.3 V and 5 V.
The typical power conversion gain is 8.3 dB.
The device draws a total quiescent current of 350 mA at 5 V.
