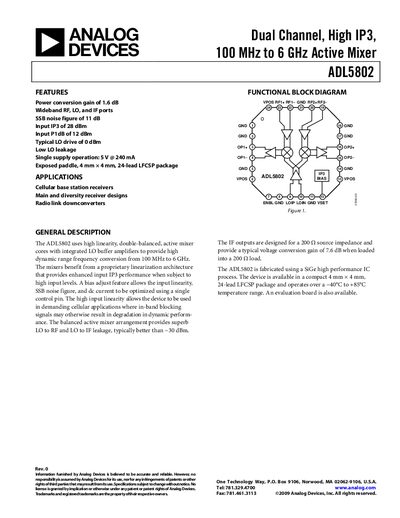

The ADL5802 is a dual channel, high IP3, 100 MHz to 6 GHz active mixer that uses high linearity, double-balanced active mixer cores with integrated LO buffer amplifiers to provide high dynamic range frequency conversion.
The ADL5802 active mixer provides wideband frequency conversion from 100 MHz to 6 GHz with high linearity and low LO leakage. It features a double‑balanced architecture, integrated LO buffer amplifiers, and a bias‑adjust pin for optimizing input IP3, noise figure, and current.
The device is supplied in a 4 mm × 4 mm, 24‑lead LFCSP package, operates from a 5 V supply, and is rated for –40 °C to +85 °C. Detailed specifications, pin descriptions, and typical performance graphs are included for design engineers.
| RF Frequency Range | 100 MHz – 6000 MHz |
|---|---|
| Supply Voltage | 5 V (typ) – 5.25 V (max) |
| Quiescent Current | 300 mA typical |
| Input IP3 | 28 dBm |
| Power Conversion Gain (900 MHz) | 15 dB |
| SSB Noise Figure (900 MHz) | 11 dB |
| LO Power | 0 dBm typical |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 4 mm × 4 mm, 24‑lead LFCSP |
The ADL5802 operates from a 5 V supply, with a typical voltage of 5 V and a maximum of 5.25 V.
The device provides an input IP3 of 28 dBm.
A typical LO drive level is 0 dBm.
It is available in a compact 4 mm × 4 mm, 24‑lead LFCSP package.
