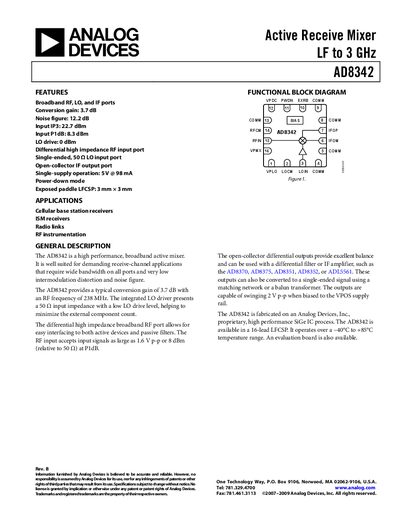

The AD8342 is a high performance, broadband active mixer. It is well suited for demanding receive-channel applications that require wide bandwidth on all ports and very low intermodulation.
The AD8342 active receive mixer from Analog Devices provides broadband RF, LO, and IF ports with a typical conversion gain of 3.7 dB and a low noise figure of 12.2 dB. It operates from a single 5 V supply and includes an integrated LO driver that requires only 0 dBm drive level, reducing external component count.
The device is offered in a 16‑lead LFCSP package, supports operation from –40 °C to +85 °C, and includes an evaluation board. Detailed specifications, pin descriptions, and performance curves are provided for design integration.
| Conversion Gain (typical) | 3.7 dB |
|---|---|
| Noise Figure (typical) | 12.2 dB |
| Input IP3 | 22.7 dBm |
| Input 1 dB Compression Point | 8.3 dBm |
| LO Drive Requirement | 0 dBm |
| Total Quiescent Current | 85‑113 mA |
| Operating Temperature Range | –40 °C to +85 °C |
The AD8342 provides a typical conversion gain of 3.7 dB.
The LO input requires a drive level of 0 dBm.
The device is rated for –40 °C to +85 °C operation.
