The ADL5356 is an integrated circuit with a RF frequency range of 1200 MHz to 2500 MHz, a dual-balanced mixer, a LO buffer, an IF amplifier, and a RF Balun.
The ADL5356 is a dual‑balanced mixer with integrated LO buffer, IF amplifier and RF balun, supporting single‑supply operation from 3.3 V to 5 V. It covers an RF frequency range of 1200 MHz to 2500 MHz and an IF range of 30 MHz to 450 MHz, offering high linearity and low LO‑to‑RF leakage.

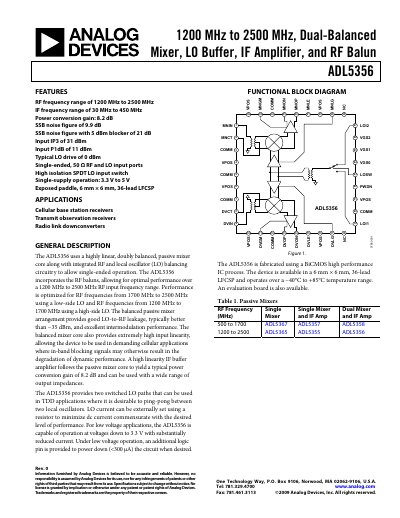

The datasheet provides full specifications, including power conversion gain, noise figure, input compression points, and absolute maximum ratings. It also describes pin configurations, typical performance graphs, and an optional evaluation board with detailed schematic and layout information.
| RF Frequency Range | 1200 MHz to 2500 MHz |
|---|---|
| IF Frequency Range | 30 MHz to 450 MHz |
| Power Conversion Gain (typ) | 8.2 dB |
| SSB Noise Figure (typ) | 9.9 dB |
| Input 1 dB Compression Point (typ) | 11 dBm |
| Supply Voltage | 3.3 V to 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 6 mm × 6 mm, 36‑lead LFCSP |
The ADL5356 operates from 1200 MHz to 2500 MHz.
It can run on a single supply between 3.3 V and 5 V.
Typical power conversion gain is 8.2 dB.
The device is packaged in a 36‑lead LFCSP measuring 6 mm × 6 mm.
