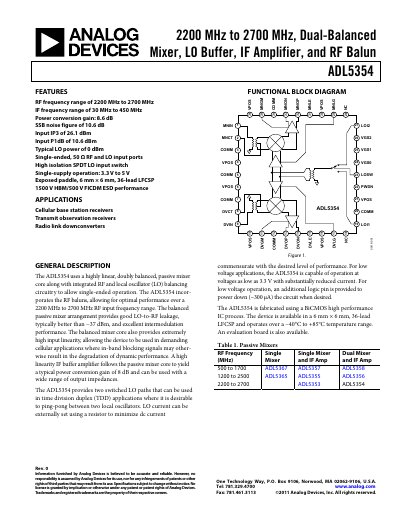

This document provides information about Analog Devices' ADL5354 product, which is a dual-balanced mixer with a wide range of RF and IF frequencies, high power conversion gain, and low noise figure.
The ADL5354 is a dual‑balanced, passive mixer with integrated RF and LO balancing circuitry, supporting single‑ended operation over a 2200 MHz to 2700 MHz RF input range. It includes on‑chip RF baluns, a high‑linearity IF buffer, and two selectable LO paths for TDD applications.
The document lists detailed electrical specifications, absolute maximum ratings, pin descriptions, typical performance curves, and an evaluation board layout. It also includes ordering information for the 36‑lead LFCSP package and the evaluation board.
| RF Frequency Range | 2200 MHz to 2700 MHz |
|---|---|
| IF Frequency Range | 30 MHz to 450 MHz |
| Power Conversion Gain (5 V) | 8.6 dB |
| Power Conversion Gain (3.3 V) | 8 dB |
| SSB Noise Figure (5 V) | 10.6 dB |
| SSB Noise Figure (3.3 V) | 9.9 dB |
| Supply Voltage Range | 3.3 V to 5 V |
| Maximum Supply Voltage (Absolute Rating) | 5.5 V |
| Maximum RF Input Level | 20 dBm |
| Operating Temperature Range | -40 °C to +85 °C |
The ADL5354 operates over a 2200 MHz to 2700 MHz RF frequency range.
The device can be powered from a single supply of 3.3 V to 5 V.
At a 5 V supply the typical power conversion gain is 8.6 dB.
The absolute maximum RF input level is 20 dBm.
