The ADL5365 is a 1200 MHz to 2500 MHz balanced mixer with integrated LO buffer and RF balun, supporting single-ended operation.
The ADL5365 is a highly linear, doubly balanced passive mixer with integrated RF and LO balancing circuitry, supporting single‑ended operation over a 1200 MHz to 2500 MHz RF range. It is intended for cellular base‑station receivers, transmit‑observation receivers, and radio‑link downconverters.

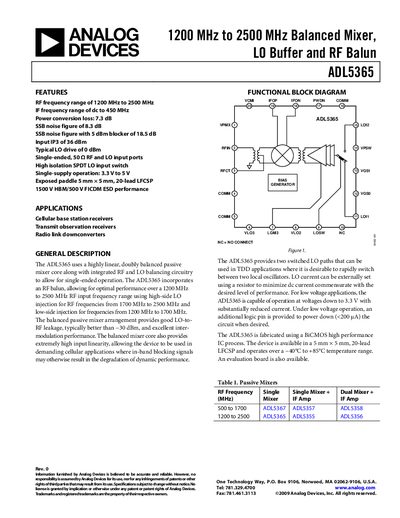

The document lists detailed electrical specifications, pin functions, typical performance curves, absolute maximum ratings, and ordering information for the 5 mm × 5 mm, 20‑lead LFCSP package. It also includes 5 V and 3.3 V performance tables and an evaluation board overview.
| RF Frequency Range | 1200 MHz to 2500 MHz |
|---|---|
| IF Frequency Range | DC to 450 MHz |
| Power Conversion Loss | 7.3 dB |
| Input IP3 | 36 dBm |
| Supply Voltage | 3.3 V to 5 V |
| Maximum Supply Voltage (Absolute Max) | 5.5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| LO Input Level (Absolute Max) | 13 dBm |
| LO‑to‑RF Leakage | —33 dBm |
The ADL5365 operates over a 1200 MHz to 2500 MHz RF frequency range.
It can be powered from a single supply between 3.3 V and 5 V.
The absolute maximum LO input level is 13 dBm.
The device provides LO‑to‑RF leakage of about —33 dBm.
