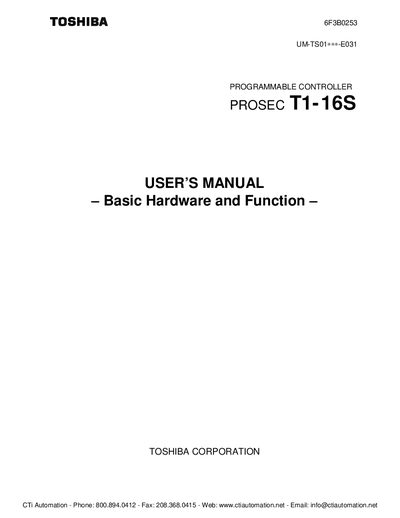

This manual introduces the basic hardware and functions of the TOSHIBA PROSEC T1- 16S programmable controller
This manual describes the safety precautions, installation steps, wiring guidelines, and operational procedures for the Toshiba PROSEC T1-16S programmable controller. It emphasizes proper handling, power shutdown before work, and compliance with EMC and UL standards.
The document also covers maintenance tasks, battery replacement, troubleshooting tips, and includes an appendix with programming instructions and special module data. Users familiar with industrial control systems will find detailed information on hardware functions, module configurations, and system diagnostics.
| Model Number | TDR116S6S, TDR116S6C, TDR116S3S, TDR116S3C |
|---|---|
| EMC Radiated Interference | EN 55011 Group 1 Class A |
| Battery Type | CR2032 |
| UL Listing File Number | E95637 |
| Hazard Classification | Class I, Division 2, Groups A, B, C, D |
Turn off power before installing or removing any units to avoid electrical shock or fire.
The controller uses a CR2032 battery; other battery types must not be used.
Use crimp‑style terminals with an insulating sheath or tape and ensure the ground terminal is connected to system ground.
