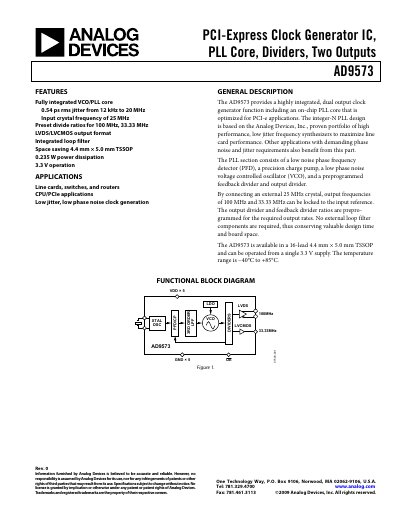

The AD9573 is a PCI-Express clock generator IC with a fully integrated VCO/PLL core, low jitter, and low phase noise. It is suitable for line cards, switches, routers, CPU/PCIe applications, and other applications with demanding phase noise and jitter requirements.
The AD9573 provides a highly integrated dual‑output clock generator for PCI‑Express applications. It includes an on‑chip PLL, loop filter, and output buffers, requiring only a 25 MHz external crystal and a 3.3 V supply.
Key features include 0.54 ps rms jitter (12 kHz‑20 MHz), low phase‑noise outputs, and a compact 16‑lead TSSOP package. The device operates from –40 °C to +85 °C and is RoHS compliant.
| LVDS Output Frequency | 100 MHz |
|---|---|
| LVCMOS Output Frequency | 33.33 MHz |
| Power Dissipation (typical) | 235 mW |
| Supply Voltage Range | 3.0 V‑3.6 V |
| LVDS RMS Jitter (100 MHz) | 540 fsec |
| Operating Temperature Range | –40 °C to +85 °C |
| External Crystal Frequency | 25 MHz |
The device operates from a 3.3 V supply, with an acceptable range of 3.0 V to 3.6 V.
The LVDS 100 MHz output has an RMS jitter of 540 fsec.
It operates from –40 °C to +85 °C.
