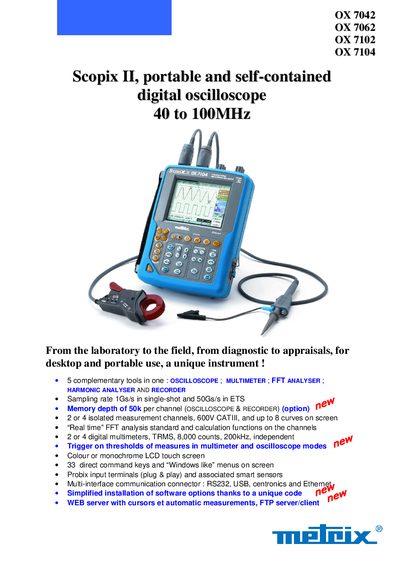

The document describes a portable digital oscilloscope called Scopix II, which combines five functions: oscilloscope, multimeter, FFT analyzer, harmonic analyzer, and recorder. It features high sampling rate, large memory depth, multiple isolated measurement channels, various trigger modes, and multiple communication interfaces.
The OX series from Metrix offers a portable, self‑contained digital oscilloscope that also integrates a multimeter, FFT analyser, harmonic analyser and recorder. Available in four models (7042, 7062, 7102, 7104), the instrument provides 40 MHz to 100 MHz bandwidth, up to 1 Gs/s single‑shot sampling and 50 Gs/s equivalent‑time sampling, with a 50 k sample memory per channel.
The device features a colour or monochrome LCD touch screen with Windows‑like menus, 2 or 4 isolated measurement channels rated 600 V CAT III, and optional multimeter, harmonic analyser and recorder functions. Connectivity includes RS232, USB, Centronics and Ethernet, plus web‑server and FTP capabilities. Power is supplied by a 98‑264 V multi‑voltage adapter with NiMH batteries, delivering up to 1.9 kg weight and IP51 protection (IP41 for the OX7104).
| Bandwidth | 40 MHz – 100 MHz |
|---|---|
| Maximum Sampling Rate | 1 Gs/s single‑shot, 50 Gs/s ETS |
| Memory Depth | 50 k samples per channel |
| Measurement Channels | 2 or 4 isolated channels, 600 V CAT III |
| Input Voltage Rating | 600 V CAT III |
| Multimeter Function | 2 or 4 DMMs, TRMS, 8 000 counts, 200 kHz bandwidth |
| Display | Colour or monochrome LCD touch screen, 320 × 240 pixels |
| Power Supply | 98‑264 V, 47‑63 Hz, < 15 W, NiMH batteries |
| Dimensions | 265 × 195 × 56 mm |
| Weight | 1.9 kg with batteries |
| IP Rating | IP51 (IP41 for OX7104) |
The instrument can sample at up to 1 Gs/s in single‑shot mode and 50 Gs/s in equivalent‑time sampling.
It offers either 2 or 4 isolated measurement channels, each rated for 600 V CAT III.
Yes, each model includes 2 or 4 digital multimeters with TRMS, up to 8 000 counts and a 200 kHz bandwidth.
