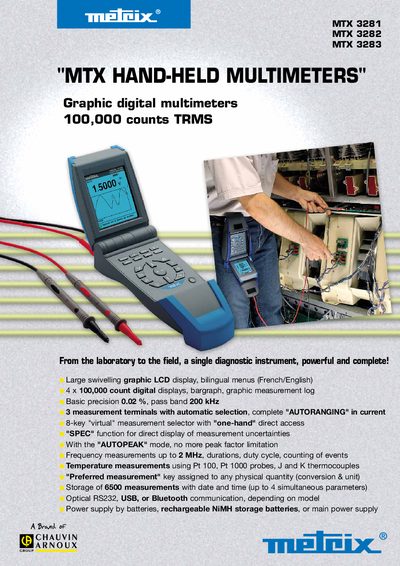

MTX 3281 MTX 3282 MTX 3283handheld multimeters, powerful and complete diagnostic instruments
The MTX 3281‑3283 series offers a large swivelling graphic LCD (8 × 58 mm, 160 × 160 resolution) with bilingual French/English menus, four digital displays, bargraph and graphic recording. It provides 100,000‑count resolution, basic precision of 0.02 % and a 200 kHz pass band, covering DC, AC, and AC+DC measurements up to 1 000 V and frequencies up to 2 MHz. Optional functions such as AUTOPEAK, SPEC, MATH, REL and SURV enhance measurement accuracy and data analysis.
Power can be supplied by standard batteries, rechargeable NiMH cells, or a mains adapter that also charges the batteries. Communication options include optical RS232, USB and Bluetooth, allowing data export to PC software. The instrument stores up to 6,500 measurements with timestamps and offers accessories such as cables, batteries, and optional communication kits.
| Counts | 100,000 |
|---|---|
| Basic precision | 0.02 % |
| Pass band | 200 kHz |
| Frequency range | up to 2 MHz |
| Measurement terminals | 3 (V, A, COM) |
| Storage capacity | 6,500 measurements |
| Communication interfaces | Optical RS232, USB, Bluetooth |
| Power supply options | Batteries, rechargeable NiMH, mains adapter |
| Display resolution | 160 × 160 pixels |
The multimeter can use an optical RS232 link, a USB adapter, or Bluetooth wireless link, depending on the model.
Up to 6,500 measurements with date and time can be stored.
The basic precision is 0.02 % for voltage and frequency measurements.
It can be powered by standard batteries, rechargeable NiMH batteries, or a mains adapter that also charges the batteries.
