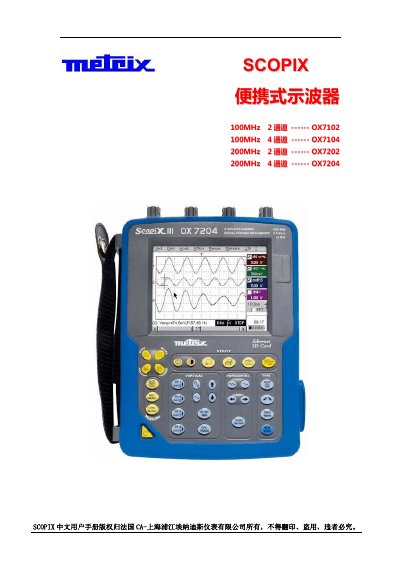

Metrix OX7102 Portable Digital Oscilloscope User Manual
This manual introduces the Metrix OX7102 portable digital oscilloscope, covering its hardware overview, safety guidelines, and basic operation. It details the various measurement modes—oscilloscope, multimeter, harmonic analysis, and recorder—along with menu navigation and key functions.
The document also includes firmware upgrade procedures, network and USB connectivity, accessory descriptions, technical specifications, and warranty information. Users can find calibration, automatic measurement, and troubleshooting guidance throughout the guide. This manual is written in Chinese.
Metrix OX7102 specifications
| Sampling rate | 2.5 GS/s |
|---|---|
| Bandwidth | 100 MHz |
| Vertical range | 2.5 mV – 200 V/div |
| Maximum input voltage (no probe) | 600 VDC / 600 Vrms / 850 Vpk |
| Dimensions | 265 mm × 195 mm × 56 mm |
| Weight | 2.1 kg |
| Battery type | 9.6 V NiMH, 4 Ah |
Source: Metrix OX7102 Portable Digital Oscilloscope User Manual
