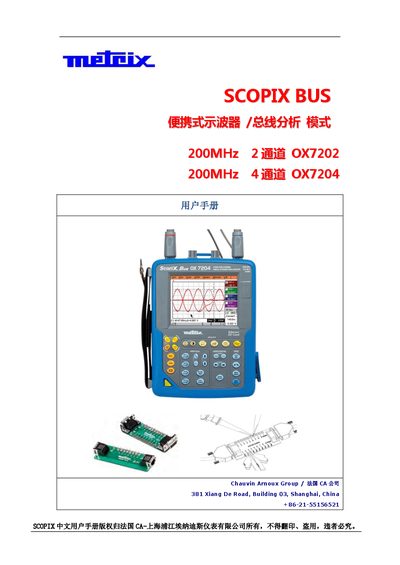

The Metrix SCOPIX OX7202/OX7204 portable digital oscilloscope user manual provides operation instructions, safety information, specifications, and…
This manual introduces the Metrix SCOPIX OX7202 and OX7204 portable digital oscilloscopes, covering their hardware features, operating modes, and accessories. It is intended for end‑users to safely set up, operate, and maintain the instruments.
The document details the four main operating modes (oscilloscope, multimeter, recorder, and bus‑analysis), firmware update procedure, safety warnings, warranty terms, technical specifications, and a list of optional accessories and connectors. This manual is written in Chinese.
| Channel count | 2 channels (OX7202) / 4 channels (OX7204) |
|---|---|
| Vertical range | 2.5 mV to 200 V/div |
| Sample rate | 2.5 GS/s (real‑time 50 GS/s) |
| Maximum input voltage (no accessory) | 600 VDC / 600 Vrms / 850 Vpk |
| Memory depth per channel | 2500 samples |
| Power supply voltage | 98 V – 264 V AC |
| Dimensions (W×H×D) | 265 mm × 195 mm × 56 mm |
| Weight | 2.1 kg |
The OX7202 model provides 2 isolated channels (CH1 and CH4).
Without accessories the instrument can accept up to 600 VDC, 600 Vrms, or 850 Vpk.
Visit the Chauvin‑Arnoux website, go to the Support → Download Center, and download the firmware that matches your oscilloscope model.
