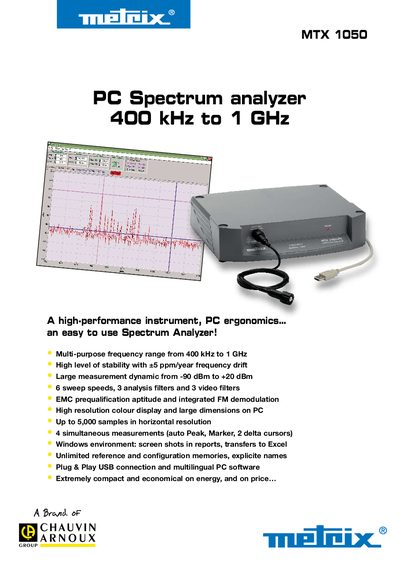

MTX 1050 PC Spectrum analyzer 400 kHz to 1 GHz is a high-performance instrument, PC ergonomics… an easy to use Spectrum Analyzer!
The MTX 1050 is a PC‑based spectrum analyzer covering a frequency range from 400 kHz to 1 GHz with high stability (+5 ppm/yr) and a dynamic measurement range of –90 dBm to +20 dBm. It offers six sweep speeds, multiple resolution and video filters, and up to four simultaneous cursors for detailed signal analysis.
This handbook describes the instrument’s technical features, connection options (USB plug‑and‑play), software functions, safety standards, dimensions, and packaging. It also includes ordering information and contact details for Chauvin Arnoux distributors worldwide.
| Frequency range | 400 kHz to 1 GHz |
|---|---|
| Frequency drift | +5 ppm/1 year |
| Measurement range | -90 dBm to +20 dBm |
| Sweep speeds | 30 ms, 50 ms, 100 ms, 200 ms, 500 ms, 1 s |
| Resolution filters (RBW) | 12 kHz, 120 kHz, 1 MHz |
| Video filters (VBW) | 1 kHz, 10 kHz, 300 kHz |
| Input impedance | 50 Ω nominal |
| Power consumption | 230 Vac, approx 7 W |
| Dimensions | 270 mm × 63 mm × 215 mm |
The MTX 1050 covers frequencies from 400 kHz up to 1 GHz.
The analyzer supports four simultaneous cursors.
It connects to a PC via a standard Plug & Play USB interface.
The dynamic range extends from –90 dBm to +20 dBm.
